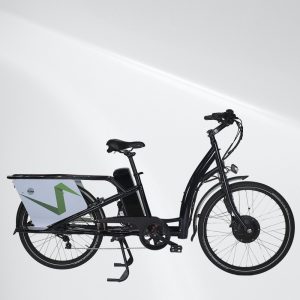

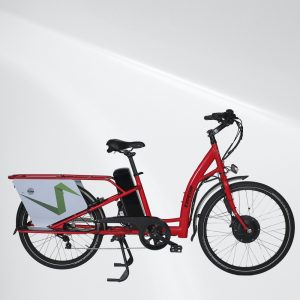

Expedir
(Front- 26”) (Rear- 24”) The Best Cargo / Utility Bike
COMPONENTS
Frame | Chrome Molybdenum 4130 steelStep-Thru Frame Seat Tube Height: 17” |
---|---|
Fork | Cr Mo 4130 steel |
Gears | Shimano Alivio 9 speed sprocket ( option Shimano Alfine 8 ), 48T Prowheel Al Alloy Chainwheel, KMC Z99 RB Rust resistant chain. Option: Shimano Alfine 8 |
Brakes | Hydraulic brakes ; Magura or Tektro with electric cut-off or Alfine brakes |
Wheels | Front 26″ Al alloy Rims,Sandvik T-306 SUS Spokes 13g, Schwalbe Pickup 26” x 2.5 front, rear 24” x 2.4 , Polycarbonate Fenders |
Saddle | Salle Royal. |
Kick stand | eZee Heavy duty central kick stand |
Accessories | Brass bell, safety board for rear wheel, window for Yebb child seat. stand |
ELECTRIC SYSTEM
Motor | BLDC motor with planetary gears – nominal power rating :EU 250W: 25km/h. USA 500W: 20 mph, AU 200W 25 kmphAluminum motor hub black coated. |
---|---|
Battery | Li+ Battery 36V 16Ah, 3 amps Smart Charger |
Controller | Field Orientated Control (FOC) Max Amps: 20 Amps, Mosfet: IRFB4110, Die cast Aluminium casing |
Display Console | Battery gauge and power assist level selection. 37V nominal, 5 level Power Assist.Throttle / PAS / Bimodal modes |
Lighting | Rear – Spanninga Micro FF, RL 980Front – Roxim XE high power LED 400 Lumen |
