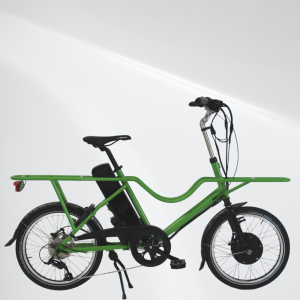

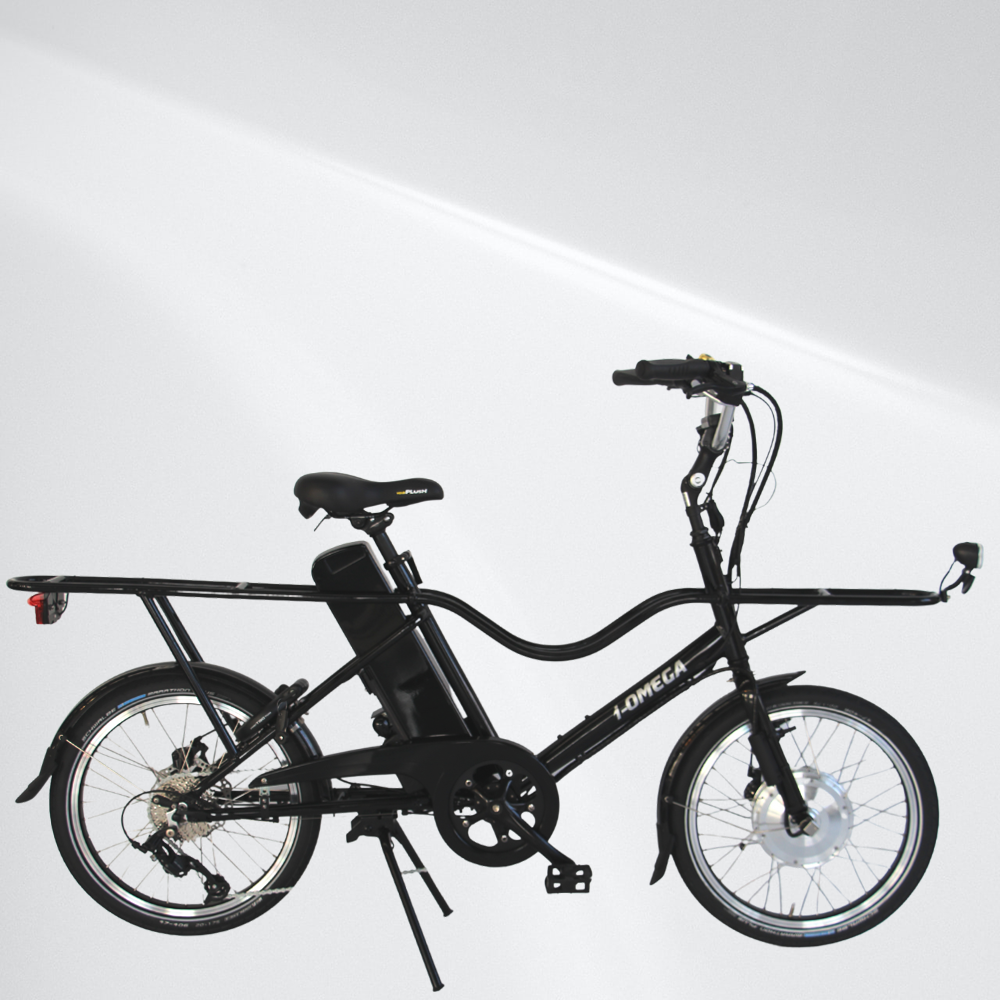

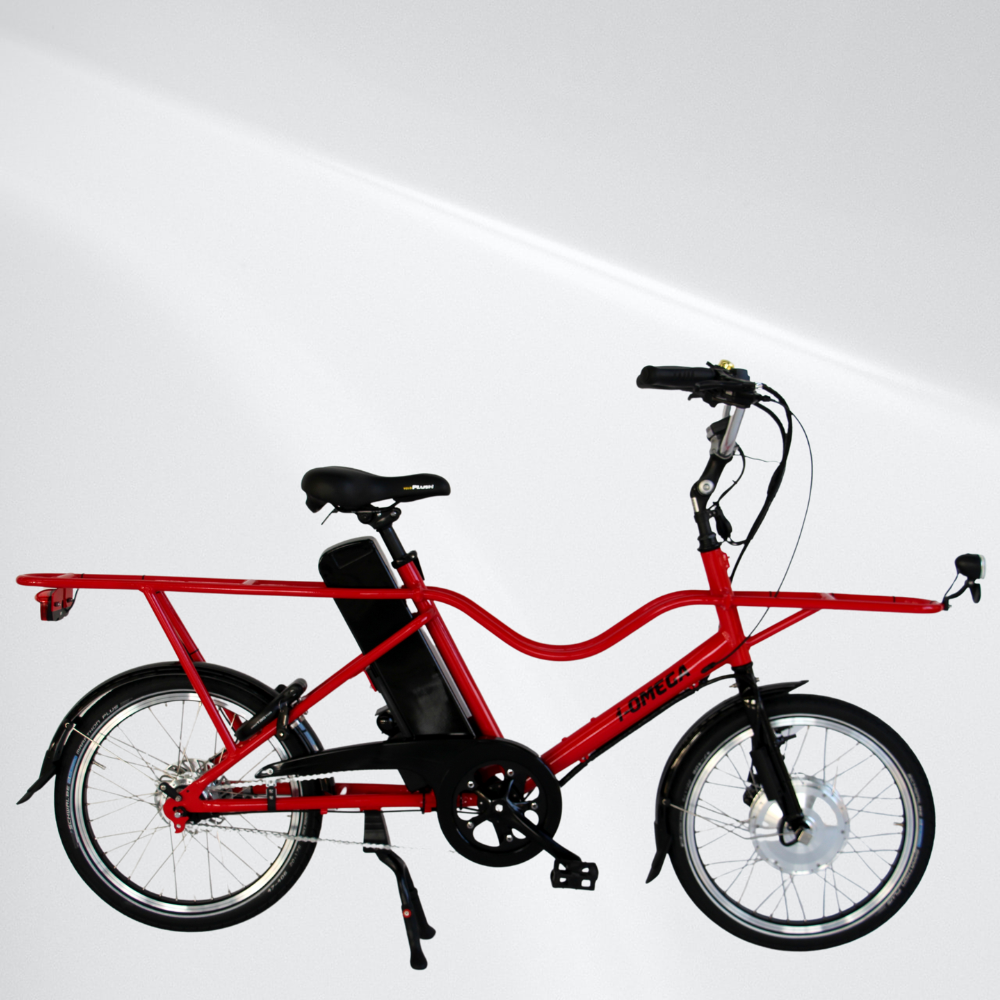

20'' Cargo / Utility Bike
i-Omega
COMPONENTS
Frame | Al. Alloy 7003 |
---|---|
Fork | Al Alloy 6016 |
Gears | Shimano Nexus 7 Speed / Shimano Alivio 9 Speed. 48T Al crank, SO-248PP/1, 170mm |
Brakes | (F) Shimano M. Disc Brake 180mm Rotor (R) Shimano M. Disc Brake 180mm Rotor |
Wheels | Schwalbe Marathon Plus 20” x 1.75”, Al Alloy double wall 19mm width, Stainless steel spokes |
Saddle | Salle Royal |
ELECTRIC SYSTEM
Motor | BLDC motor with planetary gears – nominal power rating :EU 250W: 25km/h. USA 500W: 20 mph, AU 200W 25 kmphAluminum motor hub black coated. |
---|---|
Battery | Li+ Battery 36V 16Ah, 3 amps Smart Charger |
Controller | Field Orientated Control (FOC) Max Amps: 20 Amps, Mosfet: IRFB4110, Die cast Aluminium casing |
Display Console | Battery gauge and power assist level selection. 37V nominal, 5 level Power Assist.Throttle / PAS / Bimodal modes |
Lighting | Rear – Spanninga Micro FF, RL 980Front – Roxim XE high power LED 400 Lumen |
