Choose Your Bike
CHOOSE YOUR BIKE
Make Our Bike as Yours

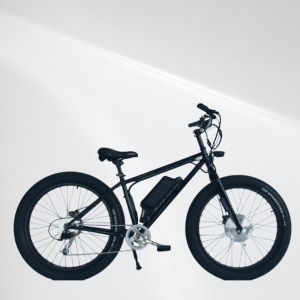

E-Rex
26″ Fat Electric Bike
COMPONENTS
Frame | Chrome Moly 4130 |
|---|---|
Fork | Chrome Moly 4130 |
Gears | DNP 9 Speed 11 – 32T, Shimamo Alivio 9 Speed Thumb shift., Prowheel 48T Al Alloy |
Brakes | (F) Shimano M. Disc Brake 180mm Rotor (R) Shimano M. Disc Brake 180mm Rotor |
Wheels | Vee Rubber Speedster 26” x 3.5”, Weinmann Rigida 65 mm width, Stainless steel spokes |
Saddle | Salle Royal. |
Accessories | Bell |
ELECTRIC SYSTEM
Motor | BLDC motor with planetary gears – nominal power rating :EU 250W: 25km/h. USA 500W: 20 mph, AU 200W 25 kmphAluminum motor hub black coated. |
|---|---|
Battery | Li+ Battery 36V 16Ah, 3 amps Smart Charger |
Controller | Field Orientated Control (FOC) Max Amps: 20 Amps, Mosfet: IRFB4110, Die cast Aluminium casing |
Display Console | Battery gauge and power assist level selection. 37V nominal, 5 level Power Assist.Throttle / PAS / Bimodal modes |
Lighting | Front – Roxim XE high power LED 400 Lumen |
