Street

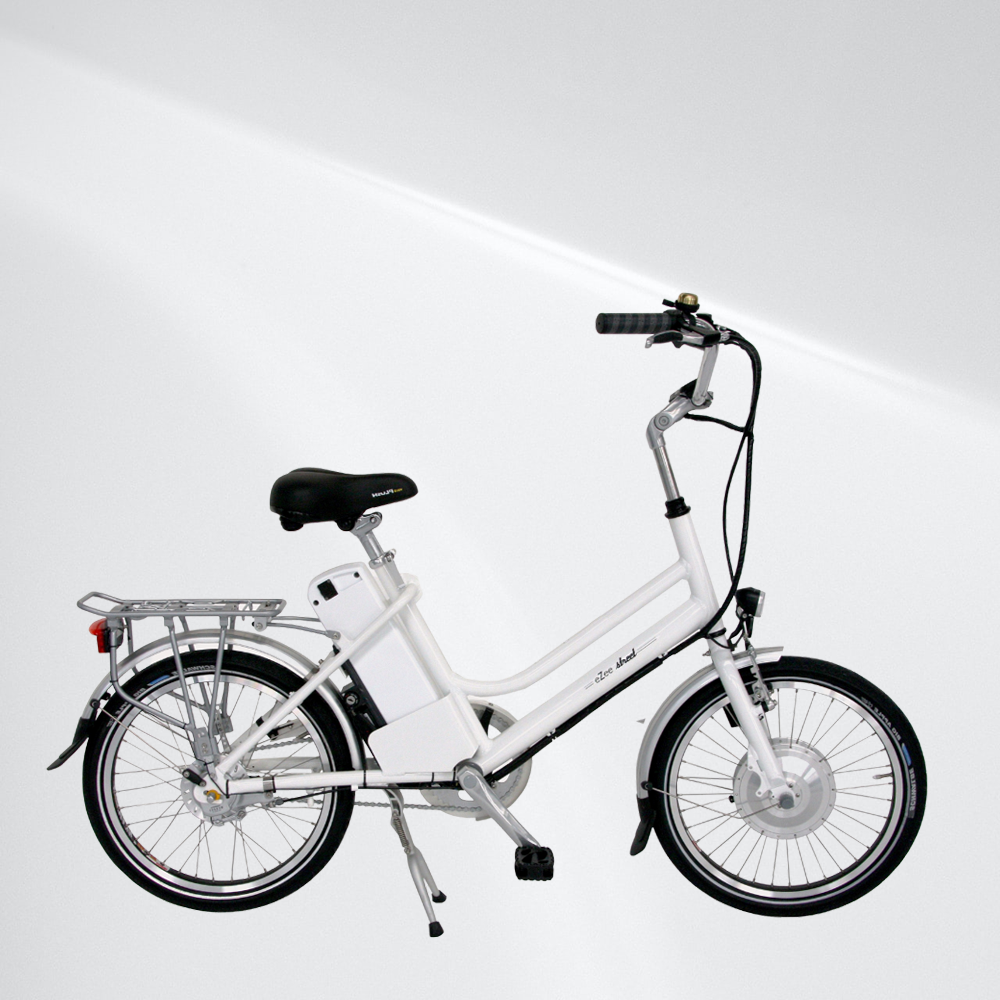

20″ Compact City Electric Bike

COMPONENTS

Frame
Aluminium Alloy 7003 17″.
Gears
Shimano Nexus Inter 7 Speed Hub, 48T Prowheel Al Alloy Chainwheel
Option: Shimano Nexus Inter 8
Brakes
Shimano M375 Disc Brakes (Front 180mm Rotor), Shimano Roller Brake
Option: Hydraulic Disc Brakes with E-Cut off
Wheels
Alloy Rim, 20″ Sandvik SS Spokes, Schwalbe Pickup tyres, Polycarbonate Fenders
Saddle
Salle Royal.
Accessories
Brass bell

ELECTRIC SYSTEM

Motor
BLDC motor with planetary gears – nominal power rating :EU 250W: 25km/h. USA 500W: 20 mph, AU 200W 25 kmph
Aluminum motor hub black coated.
Battery
Li+ Battery 36V 16Ah, 3 amps Smart Charger
Controller
Field Orientated Control (FOC) Max Amps: 20 Amps, Mosfet: IRFB4110, Die cast Aluminium casing
Display Console
Battery gauge and power assist level selection. 37V nominal, 5 level Power Assist.
Throttle / PAS / Bimodal modes
Lighting
-Rear – Spanninga Micro FF, RL 980
Front – Roxim XE high power LED 400 Lumen
