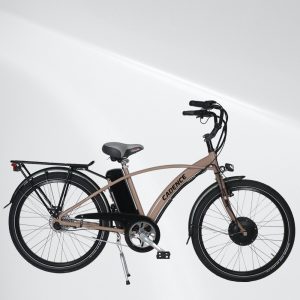

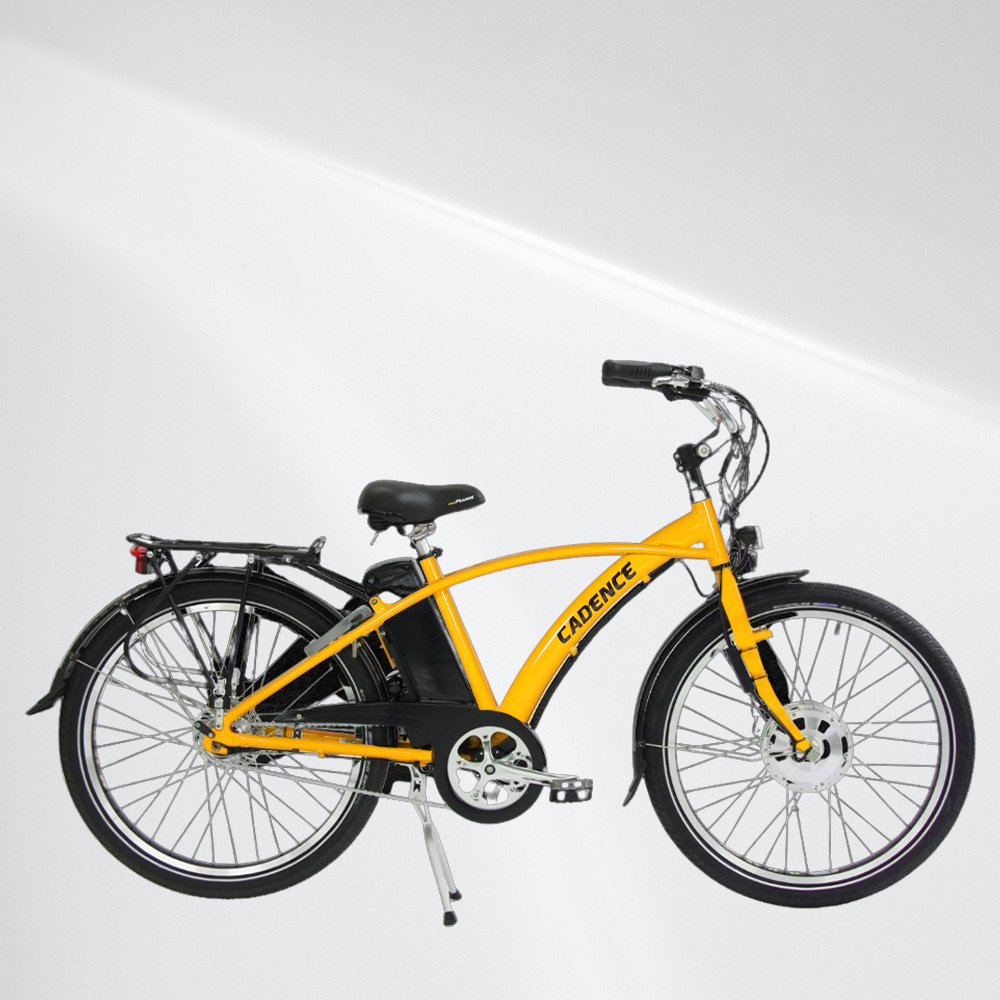

Cadence

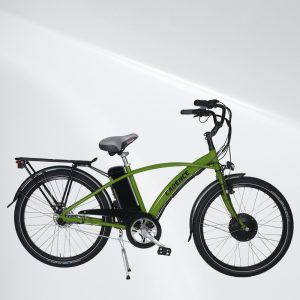

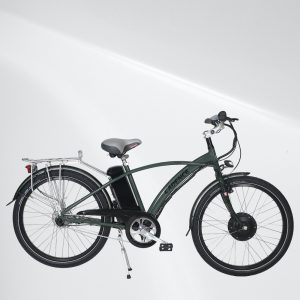

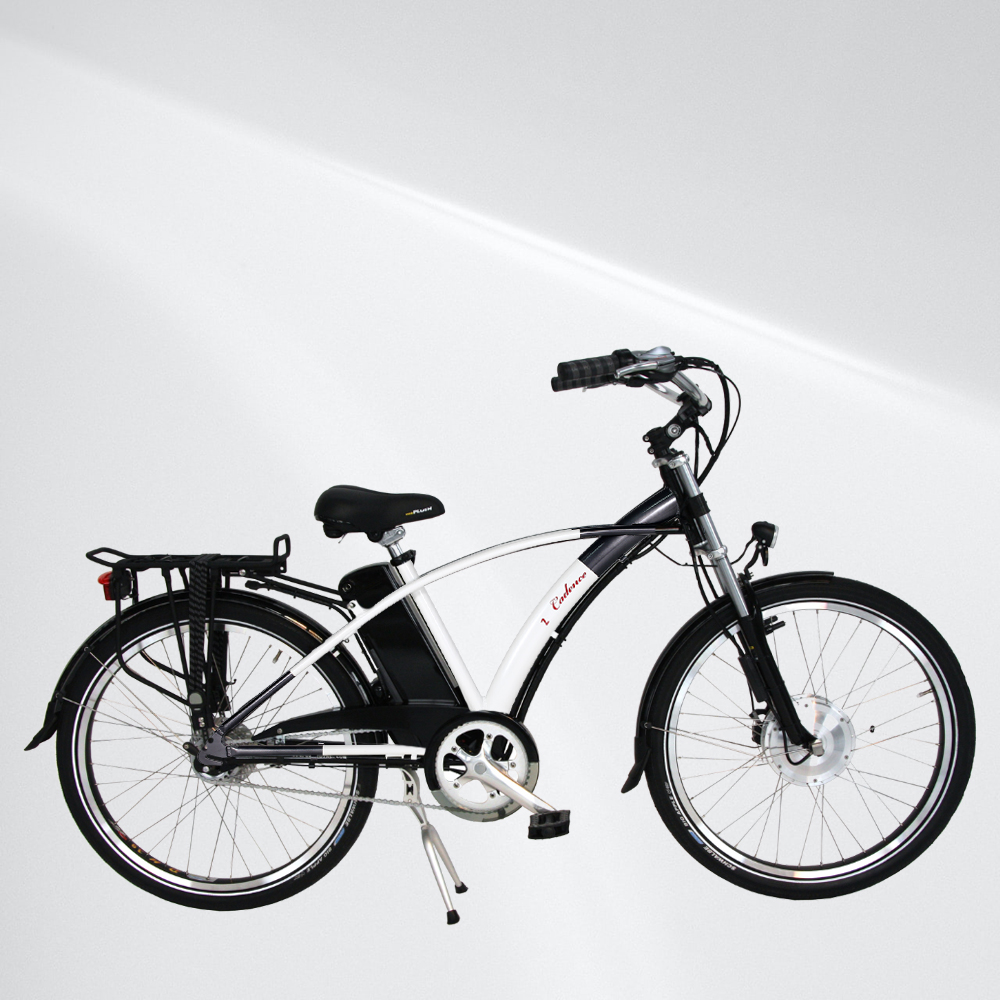

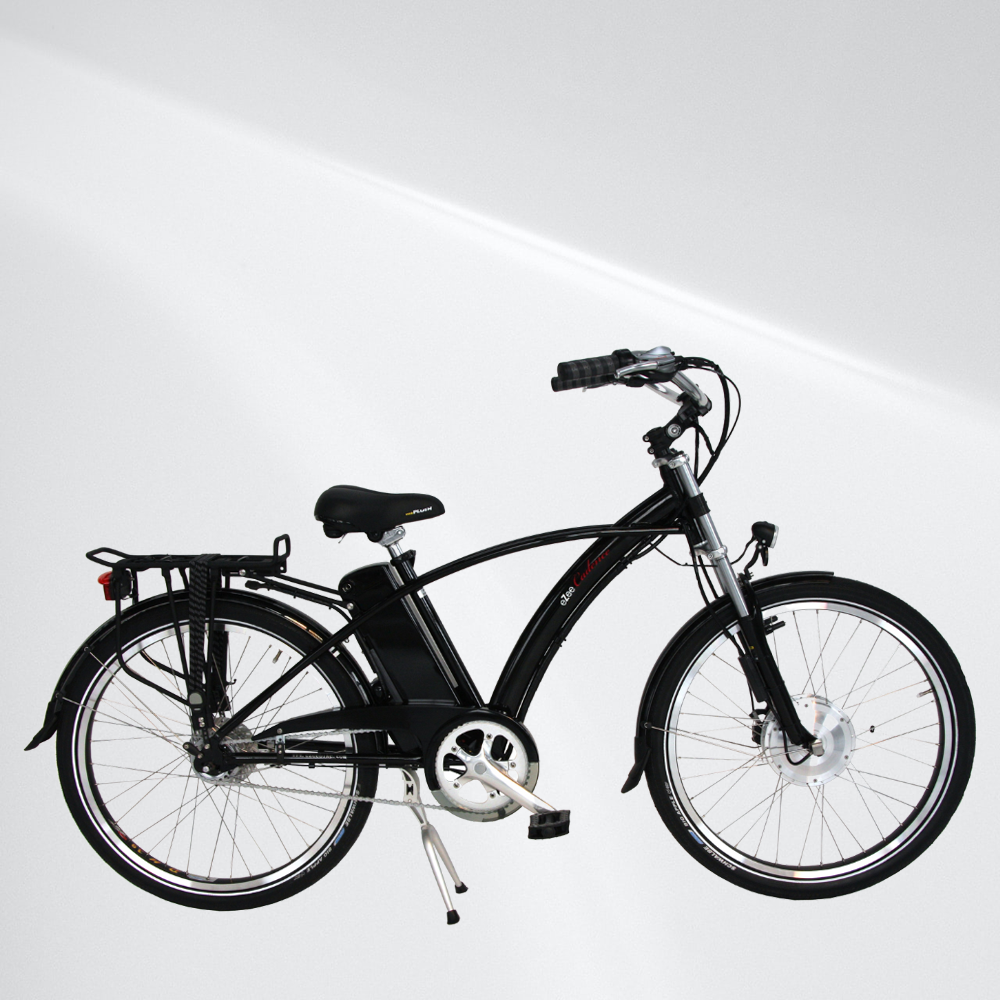

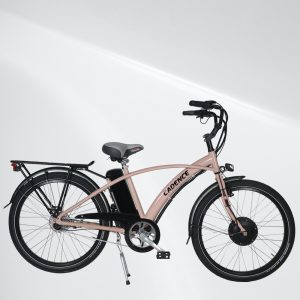

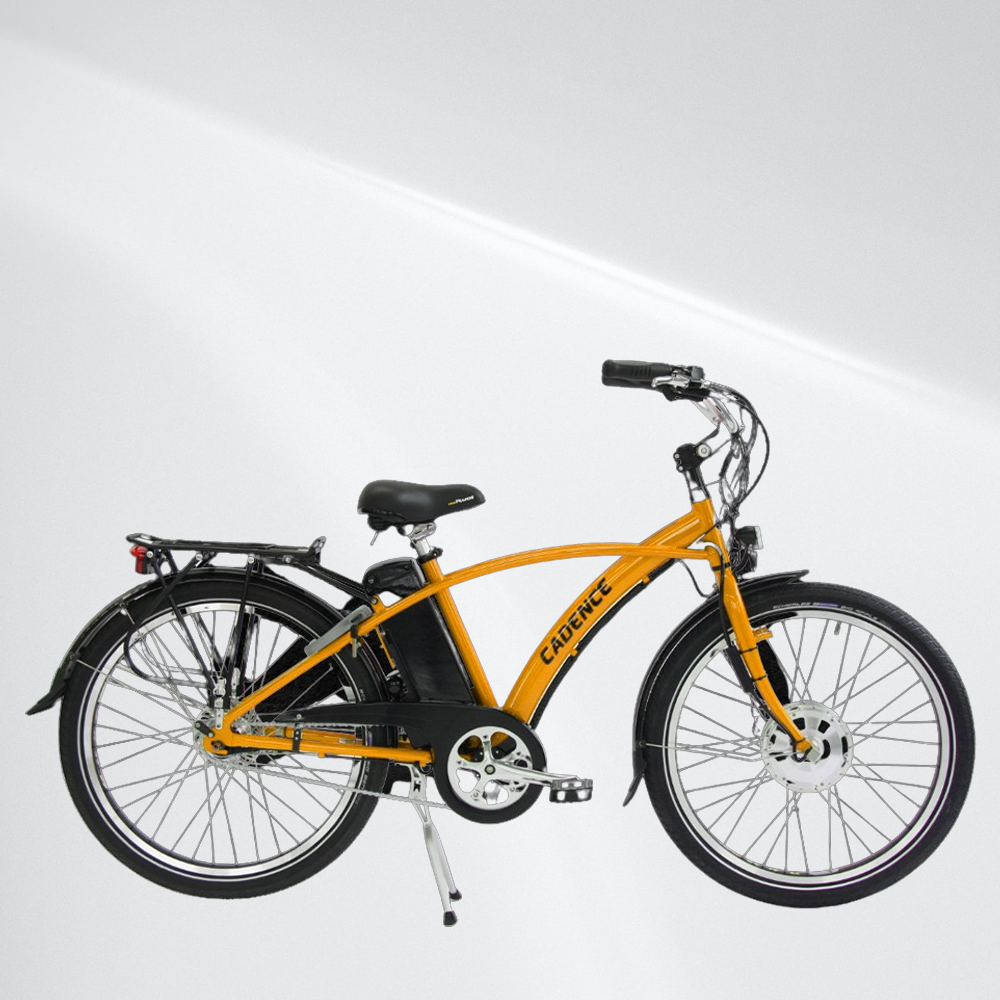

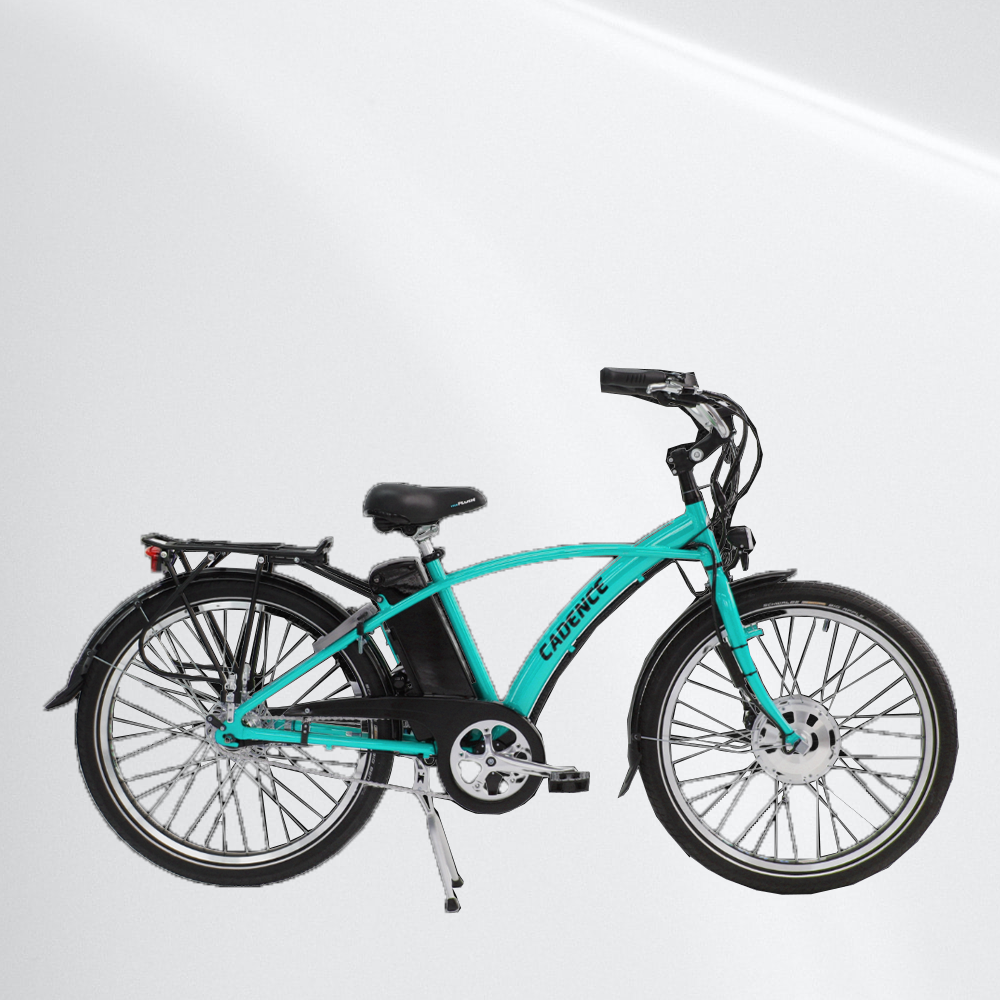

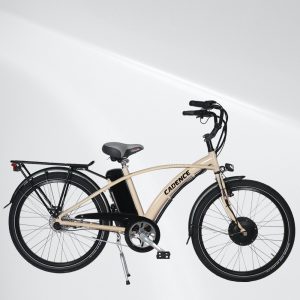

Cruiser electric bike
COMPONENTS
Frame | 6061 Al Alloy. T4, T6. Seat Tube Height: 19″ |
|---|---|
Fork | Chrome Moly 4130. option : downhill double crow suspension fork |
Gears | Shimano Nexus Inter 3 Speed Hub, 48T Prowheel Al Alloy Chainwheel, KMC Z51 Rust Buster link chain Option: Shimano Inter 7 Shimano. |
Brakes | Shimano V brakes front, Shimano roller brake BRIM80 rear |
Wheels | 26” alloy rim, Sandvik Stainless steel Spokes, Schwalbe Big Apple 26 x 2.2” Fenders |
Saddle | Salle Royal. |
Accessories | Brass bell |
ELECTRIC SYSTEM
Motor | BLDC motor with planetary gears – nominal power rating :EU 250W: 25km/h. USA 500W: 20 mph, AU 200W 25 kmphAluminum motor hub black coated. |
|---|---|
Battery | Li+ Battery 36V 16Ah, 3 amps Smart Charger |
Controller | Field Orientated Control (FOC) Max Amps: 20 Amps, Mosfet: IRFB4110, Die cast Aluminium casing |
Display Console | Battery gauge and power assist level selection. 37V nominal, 5 level Power Assist.Throttle / PAS / Bimodal modes |
Lighting | Rear – Spanninga Micro FF, RL 980Front – Roxim XE high power LED 400 Lumen |
